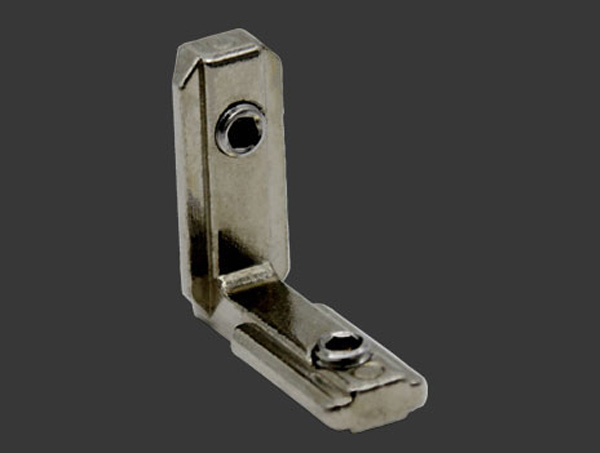

Tray built-in connector parameters:

Model: GAE28-46

NW single weight: 7.5g (g)

PQ: 600 sets (set)

Packing weight TW: 5.1kg (kg)

Packing size PD 300*220*150 (mm)

Carbon steel CS

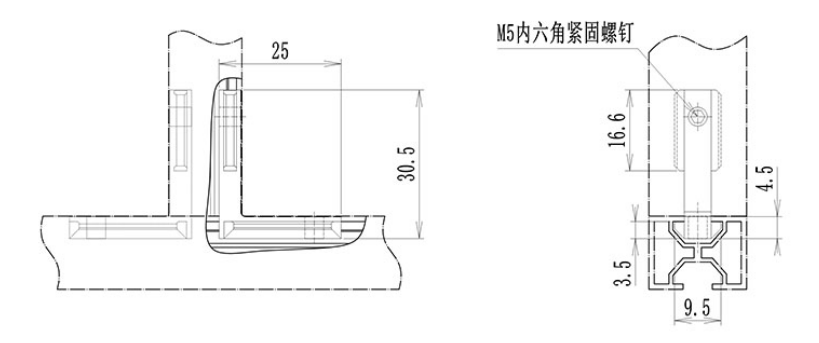

Used as a divider for tray systems, easily fixed through standard T-slots.

Fitting is the realization of the component operation, it is a six tuple < ID, Role, Beha, Msgs, Cons, Non - Func >. ID is the identifier of the connector. Role for fittings and component interaction point set, Role = < ID, Action, Event, LConstraions >. ID is the identity of Role. An Action is a collection of Role activities, each consisting of temporal links (predicates); An Event is a collection of events generated by a Role. LConstrains is a set of constraints on roles. The purpose of describing roles separately from other attributes of the join is to highlight the polymorphism of the link, that is, a join can be connected to multiple components at the same time.
