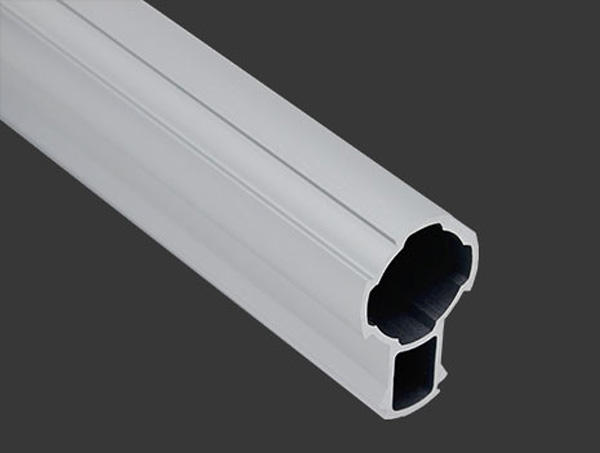

Parameters of wire rod with slot card:

Model: GA28-12A

NW single weight: 591 g (g)/ m (m)

PQ: 12 PCS (set)

Single root length L: 4 m (m)

Aluminnum Alloy 6005T6

Wire rod (also known as lean tube, plastic coated tube, logistics tube), wire rod and lean tube are the same product, they are welded steel tube with plastic resin coating, in order to prevent the coating from separating from the tube, they are bonded with a special adhesive. The material of plastic resin layer is PE, PVC and ABS. The inner wall of steel pipe is anticorrosive coating, the diameter of standard wire rod material is 28mm, and the thickness of steel pipe wall is 0.8mm, 1.0mm, 1.2mm, 2.0mm. Wire rod products are a modular system of pipe fittings and connectors that can transform any creative idea into a personalized, practical structure that is extremely simple and fast to manufacture at low cost. Plastic resin material is PE, PVC and ABS.

Lean tube and wire rod are the soul of the whole product, consisting of four layers, the outer layer is synthetic plastic resin (PVC, etc.); The intermediate layer is the adhesive layer, which is a special polymer material. The material has good bonding characteristics, and can be closely combined with resin and steel. The thermal expansion coefficient is low, and it will not fall off in long-term use. The third layer is steel pipe, generally welded pipe; The fourth layer is the inner spray anti-corrosion material, the purpose is to prevent corrosion and damage in the process of long-term use.
