External direct header parameters:

Model: GAJ28-A01

NW single weight: 60g (g)

Packing Quantity PQ: 168 sets (set)

Packing weight TW: 10.5kg (kg)

Packing size PD: 300*220*150(mm)

Aluminnum Alloy ADC12

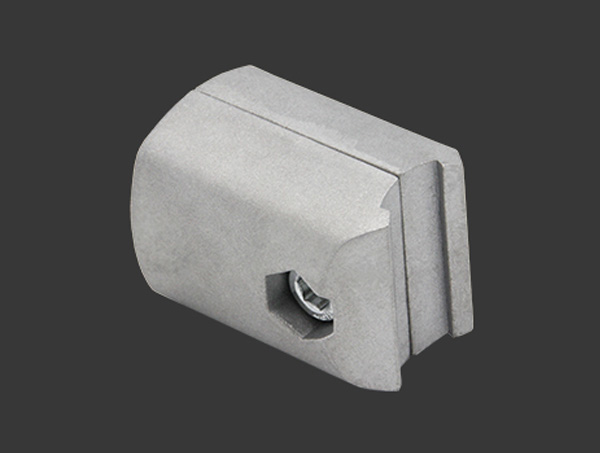

The basic outer joint of 90° structure can be quickly connected with inner hexagon wrench, and all the protruding parts with slot can be used.

The bayonet can be freely connected with other protruding slot bar, also compatible with GA43 series bar.

Third generation Lean tube (Aluminum alloy lean tube)

The third generation lean tube is made of silver white and anodized aluminum alloy, anticorrosive and rust-proof. There are also improvements in connectors and fasteners. The fasteners are made of die-cast aluminum to enhance the hardness and rigidity, and the load capacity is higher than that of the first generation lean tube.

Features:

Anodized surface, aluminum alloy material. Anticorrosion and rust proof, the connector is easy to load and unload, the appearance is elegant and generous, the appropriate connector can quickly connect and fasten the third party parts, the representative of modern flexible production, adhere to the workshop and factory environment.
