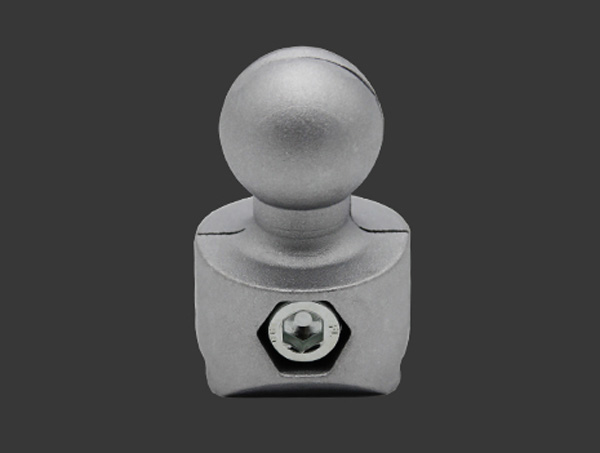

Round head hook parameters:

Model: GAJ28-A12

NW single weight: 42g (g)

PQ: 250 sets (set)

Packing weight TW: 10.8kg (kg)

Packing size PD: 300*220*150(mm)

Aluminnum Alloy ADC12

Easy to install the hook, can be hung with rope lifting ring tools and other purposes.

The line rod lean tube hook is mainly used to hang small parts and other tools on the line rod lean tube, so as to keep the table clean and meet the 5S production standard. Then what kinds of line rod lean tube hook are there in lean production?

1. S-type hook

This S-type hook is mainly suitable for hanging tools and parts that are often used in the production process. The appearance of S-type hook is a common and commonly used line rod lean pipe hook in daily life.

2. S-shaped plate hook

The s-shaped hook is smoother and can hold more weight than an S-shaped hook.

3. The front end is closed hook

The front end sealing hook of this line rod lean tube is closed with the connecting end of lean tube. It needs to be placed on the lean tube in advance during installation, which is stable in function and not easy to fall off.

4, slide rod hook

The length of the slide rod hook is longer than that of other hooks, which is mainly applied to the support of the material container. There are three length specifications of 380mm, 480mm and 680mm.

5. Tractor hook

This hook is mainly applied in traction of tractor hook, hanging on the tractor hook and playing a connecting role. Different from the previous 4 models, this hook has a horizontal role and the previous 4 models have a vertical role.
