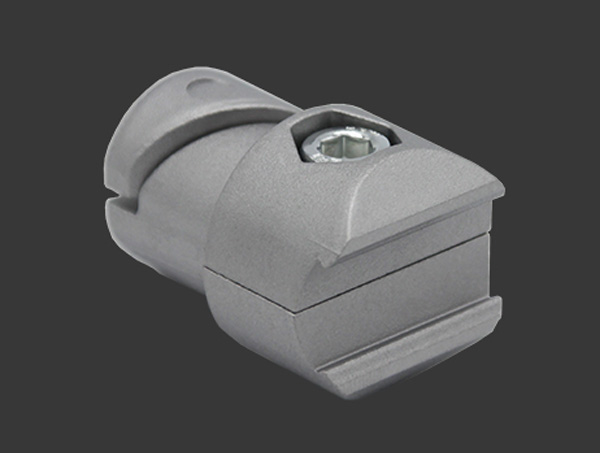

Internal straight rotary joint parameters:

Model: GAJ28-B01D

NW single weight: 46g (g)

PQ: 270 sets (set)

Packing weight TW: 12.7kg (kg)

Packing size PD: 300*220*150(mm)

Aluminnum Alloy ADC12

The built-in mounting direction bar can be arbitrarily rotated to meet the required Angle of the transverse bar.

Rotary joint refers to: pipe connection device, and connected pipeline can be relatively rotating, can be used to transmit gas, liquid, oil and other media, compact design structure, flange connection, effectively integrated into customer equipment. The rotary connector is a closed rotary connector for 360° rotating conveying medium.

Function: The function of the rotary joint is to feed liquid from one side of the pipe into the rotating or reciprocating equipment and then out of it.
