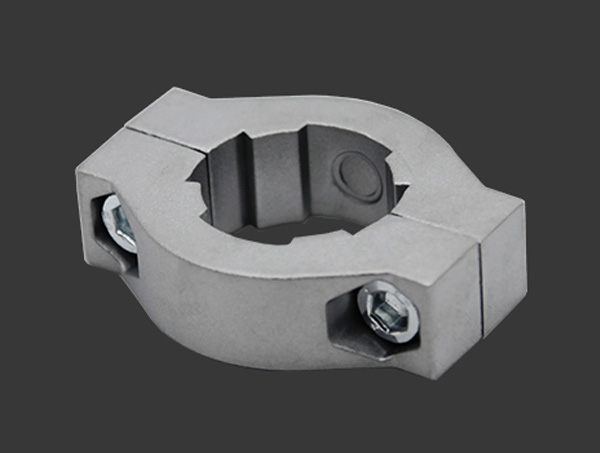

Powerful positioning seat parameters:

Model: GAE28-04

NW single weight: 55g (g)

PQ: 225 sets (set)

Packing weight TW: 12.7kg (kg)

Packing size PD: 300*220*150(mm)

Aluminnum Alloy ADC12

Used for vertical positioning of two kinds of sliding sleeves, rotators, linear rolling components, locking rotators and other auxiliary parts on line bar. (Adaptive accessories shall depend on the actual changes of the matching parts)

Through the comparison of the advantages and disadvantages of different technology schemes of the positioning seat body, the bottom injection, three box modeling, large flange down, increase the bottom core head; Adopting top riser, variable wall chillers, plane chillers and increasing the cross-section size of the runner can realize the sequential solidification of the castings from bottom to top, and the castings produced by the first inspection are qualified, and improve the process yield and labor productivity.
