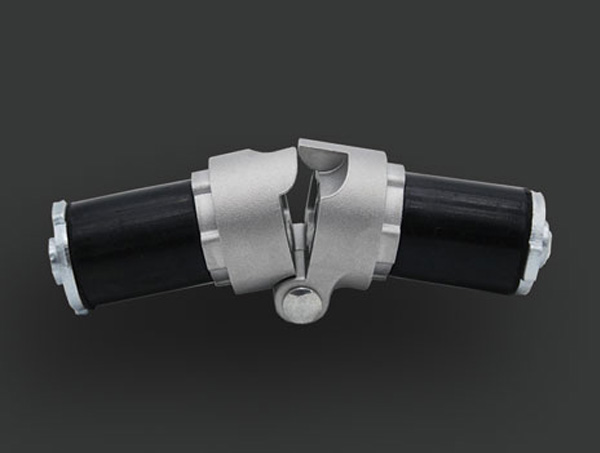

Opposite hinge component parameters:

Model: GAE28-07

NW single weight: 122g (g)

PQ: 80 sets (set)

Packing weight TW: 10.1 kg (kg)

Packing size PD: 300*220*150(mm)

ADC12+ rubber + carbon steel

The movable table used for folding structure is also used as the joint part of simple automatic device.

A hinge assembly comprises a hinge element having a supporting hole; A second hinge element having a shaft part; The second hinge element is rotationally connected with the hinge element by rotationally inserting the shaft part into the supporting hole; And a bias device placed between the hinge element and the second hinge element; The shaft part pressure is installed in the supporting hole, causing friction resistance between the outer circumference of the shaft part surface and the inner circumference of the supporting hole surface; When the hinge element is rotated in the normal and opposite directions from the middle position, the bias device shifts the hinge element toward the middle position.
