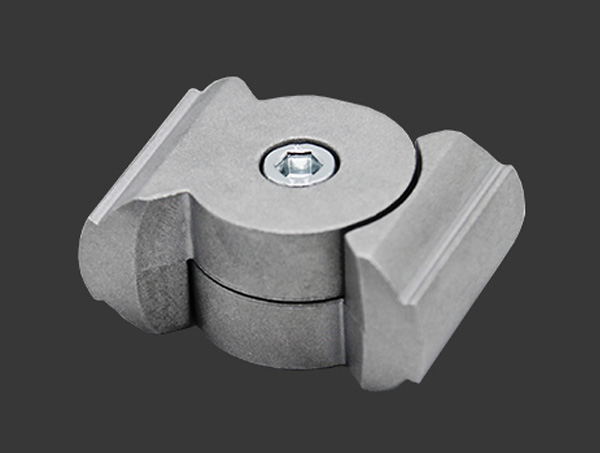

Angle fixed connector parameters:

Model: GAE28-10

NW single weight: 69g (g)

PQ: 228 sets (set)

Packing weight TW: 16 kg (kg)

Packing size PD: 300*220*150(mm)

Material: ADC12

For any Angle of product design, multiple combinations can form a specific geometric structure. Bidirectional and line groove convex part of the same slot, a variety of external and built-in joints can be selected.

A connector fixed structure, including the connector body, clamp, its characteristic is that it also includes a number of vertical setting of guiding cylinder at the bottom of the connector body, it can insert a number in the jack on the substrate, the connector body positioning on the substrate of a specific location, guiding cylinder two side concave along the length direction, respectively, set up a holding tank, A number of clamp around two side symmetrically installed in the guiding cylinder, the clamp has a fixed end and card production respectively, fixed end interpolation in two side of the connector ontology base is located in the guiding cylinder position, card production by the fixed end down, and the card inside the holding tank on either side of the guide cylinder, card production inserted into a socket in the substrate, The bottom convex outward is provided with an arc clamping end, clamping end clamping at the bottom edge of the socket of the circuit board.
