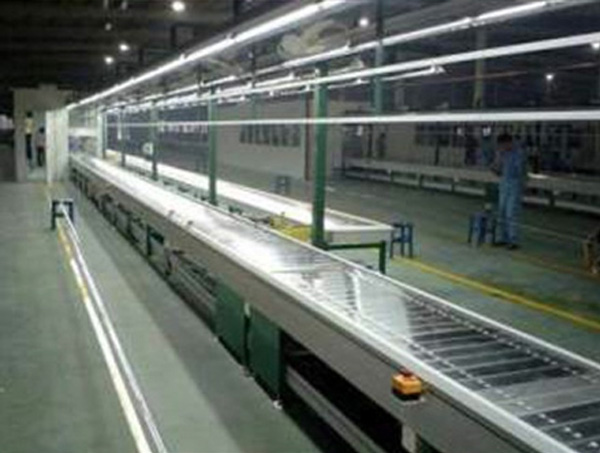

Plate chain assembly line is composed of steel structure guide rail, bent plate chain and special needle roller chain. It can be equipped with gas path, power supply, lighting and other systems. It is suitable for automatic assembly line of automobile, motorcycle, air conditioner, hardware tools, refrigerator, washing machine and other industries.

Plate chain line specifications

1. The length of the line is calculated according to the assembly process arrangement of the product;

2. The height of the line body is 2M, and the height of the working face is determined by the height of the product;

3, line width: 350mm ~ 1500mm according to product specifications;

4. Line body configuration:

1) fluorescent lamp, 2) electric fan, 3) air pipe is equipped with quick-change joint, 4) process drawing board, 5) toolbox is equipped with 220V power socket, 6) steel chain, 7) steel chain plate,

5, power configuration: domestic electromagnetic speed control/frequency conversion speed control;

6, conveying speed: 0.4 ~ 4 m/min, continuous operation, intermittent operation;

Main principle of plate chain assembly line

To achieve the purpose of production technology, the chain plate is used to drag the workpiece to do plane transmission movement. Assembly line adopts combined assembly mode, the number of stations can be set according to the process requirements. The station is equipped with power socket, toolbox, material box, etc., so that the whole process to express, orderly.
