Drum line selection

1. Length selection of roller:

Different widths of goods should be suitable for the width of the drum, generally using "transport +50mm".

2. Selection of wall thickness and shaft diameter of the roller:

According to the weight of conveying material evenly distributed to the contact drum, calculate the required bearing capacity of each drum, so as to determine the wall thickness and shaft diameter of the drum.

3, roller material and surface treatment:

According to the different delivery environment, determine the material and surface treatment used by the drum (carbon steel galvanized, stainless steel, black or plastic).

4. Select the installation mode of the roller:

According to the specific requirements of the whole conveyor, select the installation mode of the roller: spring pressing type, internal tooth shaft type, full flat tenon type, through the shaft pin hole type.

For the conical drum of the bending machine, the width and taper of the surface depends on the size of the goods and the turning radius.

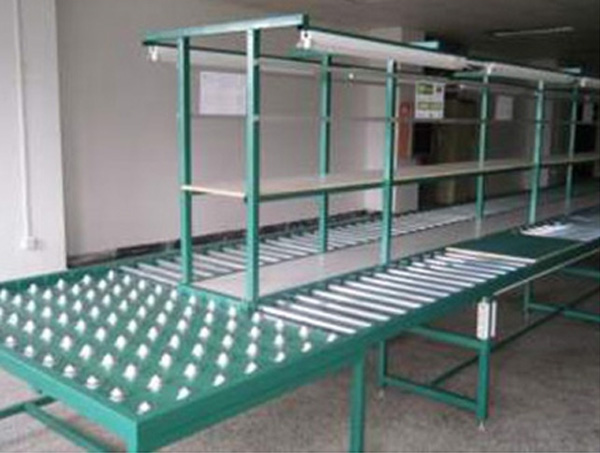

Characteristics of drum line

Drum assembly line can be transported along the horizontal or small inclination Angle with a flat bottom into the articles, such as plate, tube, profile, tray and a variety of flat bottom workpiece; For non-flat bottom materials and flexible materials can be with the help of trays or other flat bottom containers to achieve delivery;

Compared with other conveyors of conveying pieces of material, drum assembly line has the characteristics of simple structure, reliable operation, convenient maintenance, economy, energy saving, etc., and the most outstanding is that he and the production process can be well connected and supporting, and has the diversity of functions.
