The production line composed of double speed chain is suitable for conveying materials in assembly and processing production line. The principle of conveying is to use the function of double speed chain to increase the speed, so that the cargo above the assembly plate fast operation, through the block to stop in the corresponding operation position; Or through the corresponding instructions to complete the product action and migration and other functions. It adopts special, surface treated extruded aluminum alloy profile as a guide rail, so that the self-flow conveying system has very good stability and durability in the conveying process, suitable for continuous production of large quantities of products.

One, double speed chain production line composition

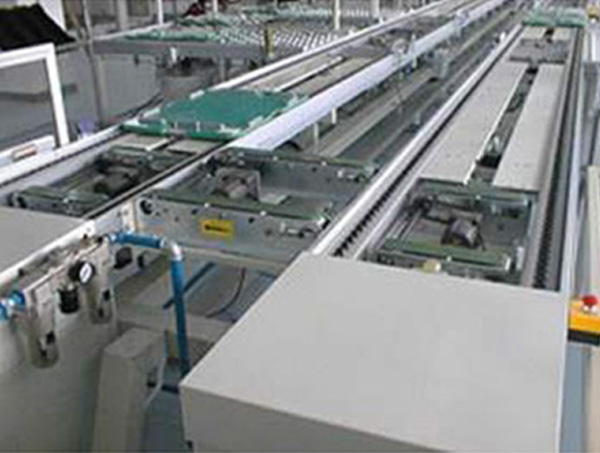

This equipment is an up and down cycle assembly line, and the tooling plate circulates in two parallel production lines. The product is usually on-line at the tail of the upper line and offline at its head, and the lower line is only used for the return of the empty tooling board.

Power supply: AC220V

Three, daily maintenance

1. Daily check whether there is abnormal sound of rotating parts; 2. Daily check whether screws are loose; 3

Four, notes

It is forbidden for non-professionals to open the electric box for any operation. 2. It is forbidden to arbitrarily transfer the position of the stopper and the travel switch

General steps of troubleshooting

Please disconnect the main power supply and air source when checking the signal or circuit on site, and reset after checking. If the signal is normal, check whether there is a corresponding output on the PLC (the indicator is on), if the PLC has output but the motor or cylinder does not move, check the corresponding line.
